商品の詳細:
お支払配送条件:
|
| 測定範囲: | 150 mm | インジケータ: | パワー・インジケータ |
|---|---|---|---|
| 動作温度: | -25°Cから+60°C | 頭部マウント: | DIN フォーム B ヘッドマウント |
| 温度範囲: | -25°Cから+60°C | 線間電圧: | 200~600ボルト AC |
| 特別な機能: | 統合されたTwinCAT 3実行環境 | 製品番号: | BSW000R |
| ハイライト: | KEYENCE LV-N11N digital laser sensor,Beckhoff PLC laser sensor module,functional digital laser sensor with warranty |
||
Manufacturer :KEYENCE
Product No. : FS-N11P

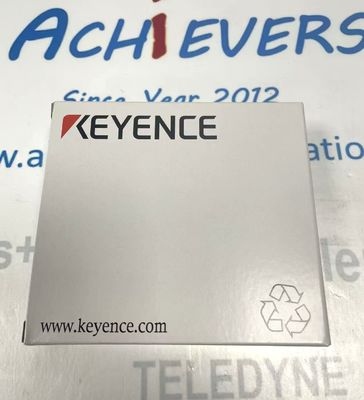

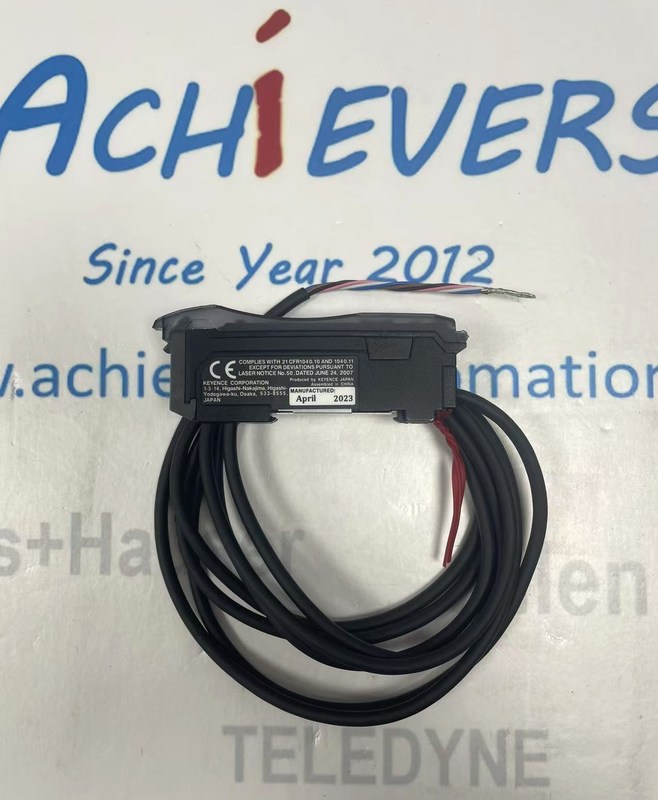

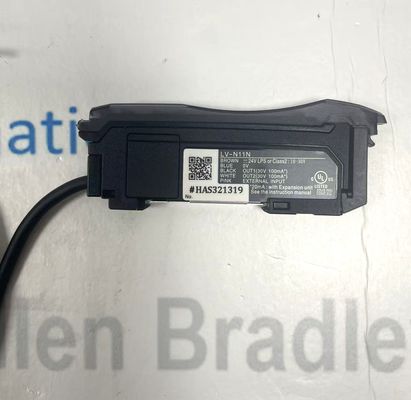

| Model Number | LV-N11N |
| Manufacturer | KEYENCE |
| Product Family | LV-N Series |
| Product Type | Digital Laser Sensor Amplifier (Main Unit) |
| Output Configuration | 2 NPN open-collector control outputs; No monitor output |
| External Input | 1 input (input time: ≥2 ms (ON) / ≥20 ms (OFF)) |
| Output Logic | Light-on / Dark-on (switch-selectable) |
| Timer Function | Off / Off-delay / On-delay / One-shot; Selectable duration: 1 ms – 9999 ms (max error: ±10%) |
| Output Ratings | 30 VDC max; Residual voltage ≤1 V (≤10 mA output current) / ≤2 V (10–100 mA); Total output current ≤100 mA (standalone) |
| Response Time | 80 µs (High Speed) / 250 µs (Fine) / 500 µs (Turbo) / 1 ms (Super) / 4 ms (Ultra) / 16 ms (Mega) |
| Power Requirements | 24 VDC (operating range: 10–30 VDC); Ripple (P-P): ≤10%; Class 2 / LPS compliant |
| Power Consumption | Normal mode: ≤830 mW (30 V); Eco mode: ≤710 mW (30 V); Eco Full mode: ≤550 mW (30 V) |
| Unit Expansion | Up to 17 total units (1 main unit + 16 expansion units); 2-output models count as 2 units |
| Physical Dimensions | 32.6 mm (H) × 9.8 mm (W) × 78.7 mm (L) |
| Weight | Approx. 75 g |
| Environmental Resistance | Ambient Temperature: -20°C to +55°C (no freezing); Relative Humidity: 35–85% RH (no condensation) |
| Mechanical Durability | Vibration: 10–55 Hz, 1.5 mm double amplitude (2 hrs/x/y/z); Shock: 500 m/s² (3x/x/y/z) |
| Protection Circuits | Reverse polarity protection, over-current protection, surge absorber |
| Materials | Case & Cover: Polycarbonate; Cable: PVC |
Brand
With the rapid development of industrial automation, KEYENCE, as a leading supplier of sensors and measuring instruments, is constantly developing and manufacturing newer and more reliable products to meet the demands of various manufacturing industries. In addition to high-quality products, the well-trained KEYENCE sales team also offers excellent services, ranging from solving application problems, providing technical sales support to responding quickly to users' requests. KEYENCE has always been committed to supporting a wide range of users and helping them become leaders in their industries. Company Information n nCompany Name: KEYENCE n nDate of Establishment: May 27, 1974 n nRegistered Capital: 2,451 million RMB (30,638 million Japanese yen) n nHead Office and Research Center: 1-3-14, Nakajima, Higashiyodo, Osaka n nNumber of Employees: 3,150 (March 2011) n nBusiness Content: Sensors, Measuring instruments, Image Systems, Control? Research on measuring instruments? Analytical instruments for development
