商品の詳細:
お支払配送条件:
|
| インストール: | フラッシュマウント可能 | 応答遅延: | ≤ 50 ms |
|---|---|---|---|
| 曲げ半径: | > 10 xケーブル直径 | 相対湿度: | 95 % 凝縮しない |
| ヒステリシス: | 0.41 0.6mm | 最小のスパン: | 0.1%の精度で5mV |
| スイッチング関数: | 通常、オープン/クローズド（no/nc） | 動作電流: | ≤ 100 mA |
| ハイライト: | Pepperl+Fuchs diffuse photoelectric sensor,OBT200-18GM-E4 photoelectric sensor,diffuse photoelectric sensor with warranty |
||

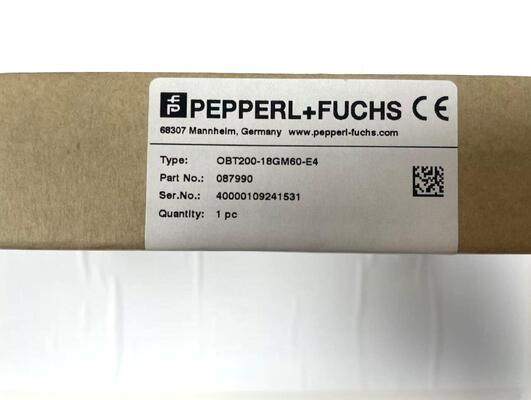

Pepperl+Fuchs OBT200-18GM-E4 - Diffuse Photoelectric Sensor
Description:
Manufacturer : Pepperl+Fuchs
Product No. :OBT200-18GM-E4
https://www.achievers-automation.com More Product
The Pepperl+Fuchs OBT200-18GM-E4 is a high-performance diffuse photoelectric sensor engineered for precise object detection in industrial automation environments. As a core product in Pepperl+Fuchs’ photoelectric sensor portfolio, it adopts a diffuse reflection design that eliminates the need for a separate reflector, making it ideal for space-constrained applications. Featuring an M18 x 1 cylindrical nickel-plated brass housing and IP67 protection rating, this sensor withstands harsh industrial conditions including dust, moisture, and mechanical impact.
Detail:
|
Parameter
|
Details
|
|
Product Model
|
Pepperl+Fuchs OBT200-18GM-E4 (Core Model; Full Variant: OBT200-18GM60-E4)
|
|
Product Type
|
Diffuse photoelectric sensor (no reflector required)
|
|
Detection Principle
|
Diffuse reflection with infrared light source
|
|
Detection Range
|
0 ... 200 mm (reference target: 200 mm x 200 mm standard white surface)
|
|
Light Source
|
Infrared LED (IRED), 880 nm wavelength
|
|
Light Spot Diameter
|
Approximately 40 mm at 200 mm detection distance
|
|
Environmental Light Immunity
|
Up to 10,000 Lux (ensures stable operation in bright environments)
|
|
Switching Mode
|
Light-on (NO) / Dark-on (NC), electrically programmable
|
|
Output Configuration
|
1 x NPN open-collector output; short-circuit and reverse polarity protected
|
|
Operating Voltage
|
10 ... 30 V DC (Class 2 power supply)
|
|
Ripple Tolerance
|
≤ 10 %
|
|
No-Load Current
|
≤ 25 mA
|
|
Switching Current
|
Maximum 100 mA
|
|
Voltage Drop
|
≤ 2.5 V
|
|
Switching Frequency
|
500 Hz (enables detection of fast-moving objects)
|
|
Response Time
|
1 ms (fast signal processing for real-time control)
|
|
Housing Design
|
M18 x 1 cylindrical housing; nickel-plated brass
|
|
Optical Window Material
|
Polycarbonate (PC)
|
|
Protection Rating
|
IP67 (dust-tight and protected against immersion in water up to 1 m)
|
|
Connection Type
|
2 m fixed cable (standard)
|
|
Indicators
|
Dual-color LED: Green (power on), Yellow (switch status); Flashing (stability control)
|
|
Control Elements
|
Detection range adjustment potentiometer
|
|
Operating Temperature Range
|
-25 °C to 55 °C (-13 °F to 131 °F)
|
|
Storage Temperature Range
|
-40 °C to 70 °C (-40 °F to 158 °F)
|
|
Net Weight
|
Approximately 110 g (0.24 lbs)
|
|
Certifications & Compliance
|
CE, cULus Listed 57M3 (for use with UL Class 2 power supplies); EAC compliant (TR CU 020/2011)
|
