Description:
Description: Danfoss
Product No. :KP35
https://www.achievers-automation.com More Products

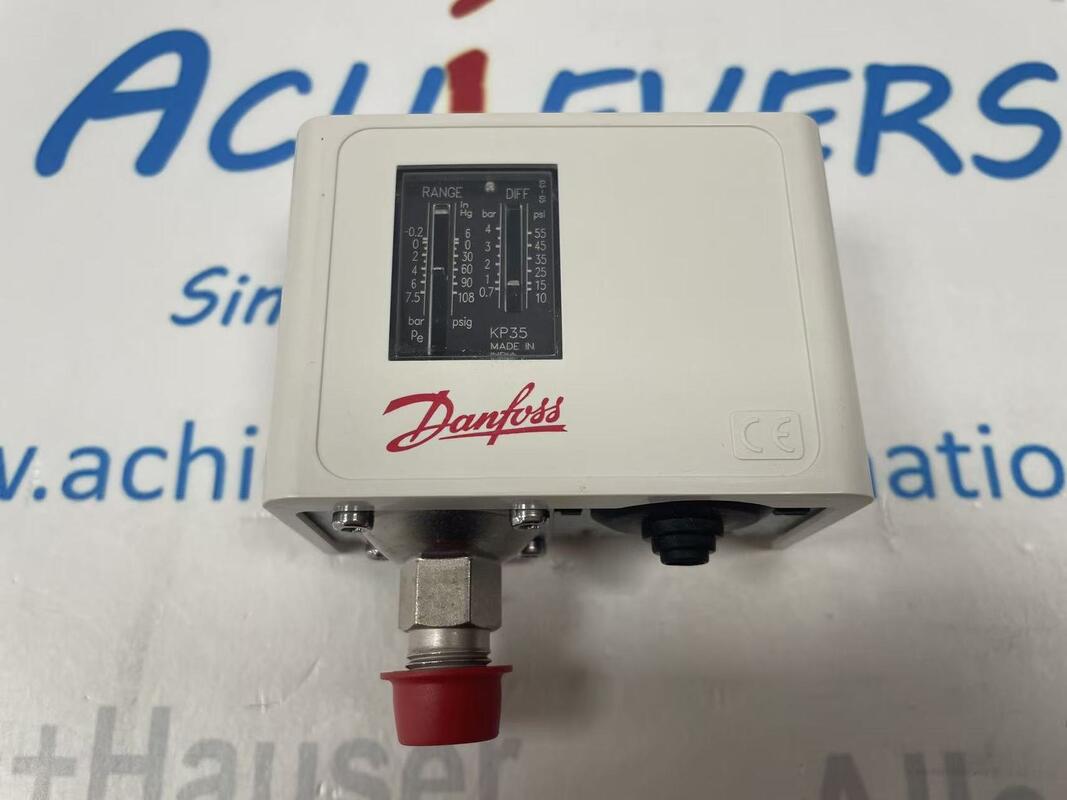

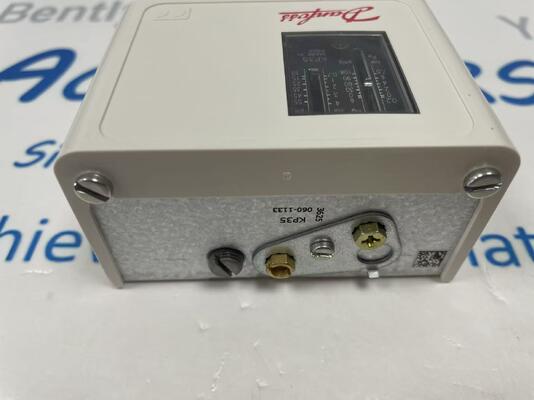

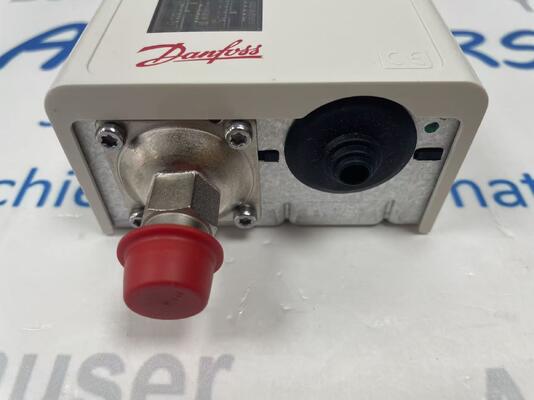

The Danfoss KP35 is a high-reliability industrial pressure switch belonging to Danfoss’s KP series of pressure control components. As a global leader in industrial automation and energy-saving solutions, Danfoss has engineered this pressure switch to meet the rigorous demands of industrial regulation, monitoring, and alarm systems. It is specifically designed for air and gaseous media, equipped with a single-pole changeover (SPDT) switch that can directly control single-phase AC motors up to 2 kW. With its compact structure, shock-resistant performance, and flexible installation, the KP35 is widely applied in pumps, boilers, air compressors, and various light industrial equipment. It provides stable pressure protection and regulation, effectively preventing equipment damage caused by abnormal pressure and ensuring the continuity of production processes.
Detail:
| Product Model | Danfoss KP35 |
| Product Series | Danfoss KP Series |
| Product Type | Industrial pressure switch |
| Pressure Regulation Range | -0.2 to 21 bar; Alternative range version: 6 - 50 psig (equivalent to approximately 0.4 - 3.45 bar) |
| Maximum Operating Pressure | 17 bar |
| Maximum Burst Pressure | 1015 psig (equivalent to approximately 70 bar) |
| Reset Type | Available in automatic reset and manual reset versions |
| Media Compatibility | Air and gaseous media |
| Ambient Temperature Range | -40°C - 65°C (equivalent to -40 – 149 ˚F); Short - term tolerance up to 175 ˚F |
| Media Temperature Range | -40°C - 100°C (equivalent to -40 – 212 ˚F) |
| Contact System | Single-Pole Double-Throw (SPDT) |
| Contact Material | Silver Cadmium Oxide (AgCdO); Optional gold-plated contact system |
| Contact Load | AC1: 16A at 400V; AC15: 10A at 400V; AC3: 16A at 400V; DC13: 12W at 220V; LR: 112A at 400V |
| Pressure Connection | G 1/4 A (compatible with ISO 228 - 1 standard); ¼” NPT alternative for specific versions |
| Sensor & Media - Contact Materials | Sensor: Tinned copper (Cu/Sn5); Bellows: Stainless steel; Pressure connection: Nickel - plated free - cutting steel |
| Protection Rating | IP44 (when installed with the top cover and backplate); P55 rating available for OEM customers |
| Certifications | UL listed (compliant with UL 353, UL 873); CE marked (compliant with EN 60947 - 4/05); C UL US certified |
| Electrical Connection | Front - mounted screwed wiring; Max wire dimension: 12 AWG |
| Cable Entry | Integral ½ in female NPSM swivel cable connector |
| Weight | 0.338 kg |
| Key Electrical Performance | Ultra - short bounce time; Snap - action contacts minimize chatter and wear |
