| 締め付けトルク: | 0.6 Nm | 出力極性: | 直流 |
|---|---|---|---|
| 線形エラー: | 0.1% | 工事の種類: | M12 |
| インターフェースの種類: | RS-485 2本の多線ドロップ | ターゲットサイズ: | 0.3 ミリ |
| 頻度の切り替え: | ≤ 10 Hz | 長さ: | 63.5mm |
| 出力電流: | 4-20 Ma | ||
| ハイライト: | Pepperl+Fuchs KFD2-SR2-EX1.W.LB isolated barrier,1-channel switch amplifier isolated barrier,high-performance isolated barrier with warranty |
||
Product Details:
Manufacturer : Pepperl + Fuchs

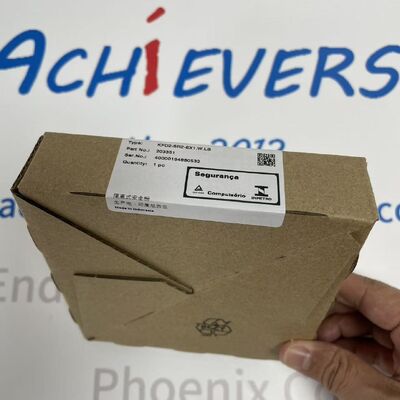

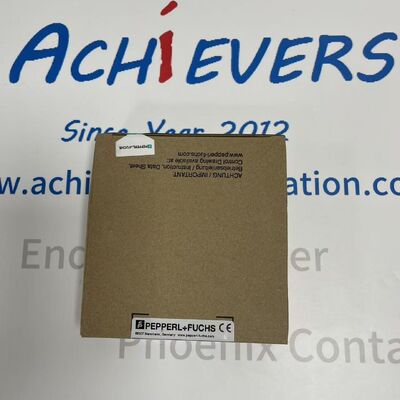

Product No. : KFD2-SR2-EX1.W.LB
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
|
Specification Category
|
Details for Pepperl+Fuchs KFD2-SR2-EX1.W.LB
|
|---|---|
|
Signal Type
|
Digital Input
|
|
Functional Safety
|
Safety Integrity Level (SIL): 2; Systematic Capability (SC): 3 (per IEC/EN 61508:2010)
|
|
Power Supply
|
Rated Voltage (UR): 19 ... 30 V DC; Ripple: ≤ 10%; Rated Current (IR): ≤ 45 mA; Power Dissipation: ≤ 0.9 W
|
|
Input Parameters
|
Connection: Field side (Terminals 1+, 2+, 3-); Open Circuit Voltage/Short-Circuit Current: Approx. 8 V DC / 8 mA; Switching Point: 1.2 ... 2.1 mA; Switching Hysteresis: Approx. 0.2 mA
|
|
Line Fault Detection
|
Breakage: I ≤ 0.1 mA; Short-Circuit: I > 6 mA
|
|
Pulse/Pause Ratio
|
Minimum 20 ms / Minimum 20 ms
|
|
Switching Frequency
|
≤ 10 Hz
|
|
Specification Category
|
Details for Pepperl+Fuchs KFD2-SR2-EX1.W.LB
|
|---|---|
|
Mounting
|
35 mm DIN mounting rail (per EN 60715:2001)
|
|
Degree of Protection (IP Rating)
|
IP20 (per IEC 60529:1989 + A1:1999 + A2:2013)
|
|
Operating Temperature Range
|
-20 °C to +60 °C
|
|
Weight
|
0.12 kgs
|
|
Galvanic Isolation
|
Reinforced insulation (per IEC/EN 61010-1); Rated Insulation Voltage: 300 V eff (input/output, input/power, output/power, output/output)
|
|
Mechanical Life
|
10⁷ switching cycles
|
|
Compliance & Certifications
|
EMC: Directive 2014/30/EU (EN 61326-1:2013, NE 21:2017, EN 61326-3-1:2017, EN IEC 61326-3-2:2018); Low Voltage: Directive 2014/35/EU (EN 61010-1:2010 + A1:2019 + A1:2019/AC:2019)
|
Brand
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
