| 締め付けトルク: | 0.6 Nm | 出力極性: | 直流 |
|---|---|---|---|
| 線形エラー: | 0.1% | 工事の種類: | M12 |
| インターフェースの種類: | RS-485 2本の多線ドロップ | ターゲットサイズ: | 0.3 ミリ |
| 頻度の切り替え: | ≤ 10 Hz | 長さ: | 63.5mm |
| 出力電流: | 4-20 Ma | ||
| ハイライト: | Pepperl+Fuchs retroreflective photoelectric sensor,RLK28-55/31/116 photoelectric sensor,isolated barrier photoelectric sensor |
||
Product Details:
Manufacturer : Pepperl + Fuchs
Product No. : RLK28-55/31/116
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
|
Specification Category
|
Details
|
|---|---|
|
Product Model
|

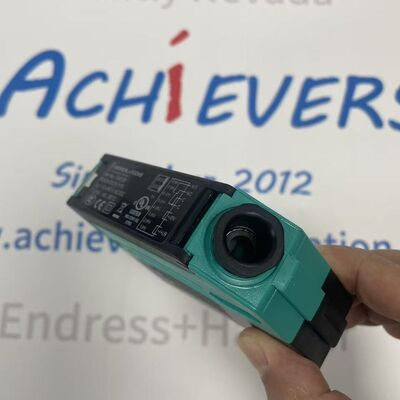

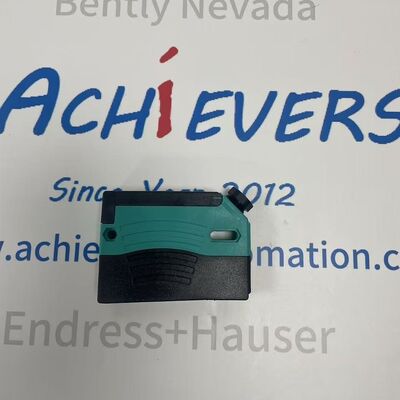

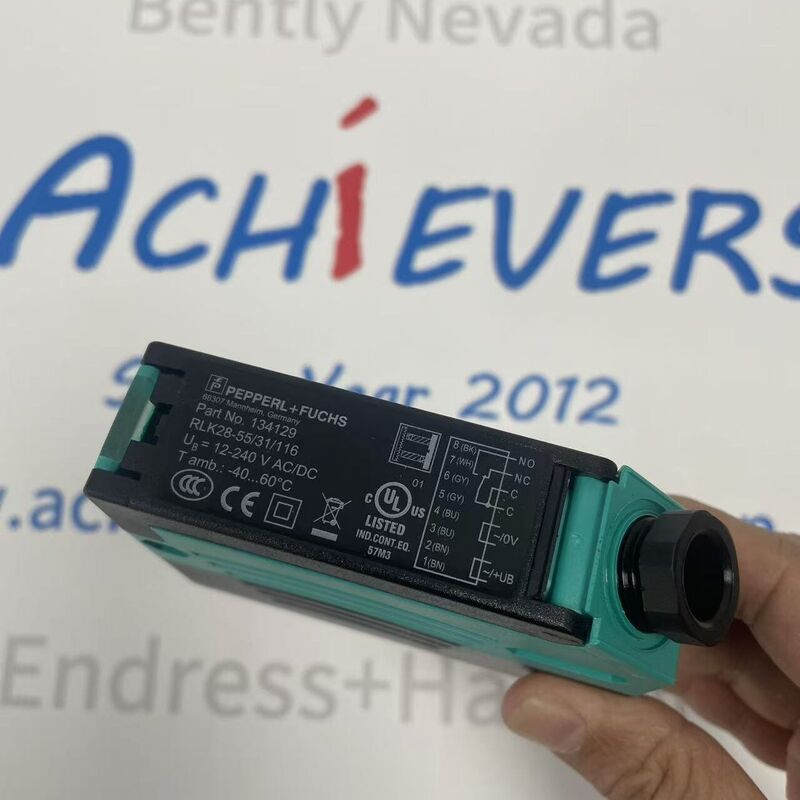

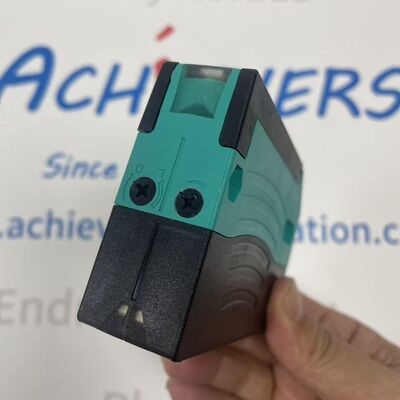

Pepperl+Fuchs RLK28-55/31/116
|
|
Alternative Part Number
|
134129
|
|
Sensor Type
|
Retroreflective Photoelectric Sensor
|
|
Light Source
|
Modulated Visible Red LED
|
|
Polarization Filter
|
Yes
|
|
Effective Detection Range
|
0 - 12 m (standard), up to 17 m (maximum)
|
|
Threshold Detection Range
|
21 m
|
|
Response Time
|
Maximum 20 ms
|
|
Operating Voltage
|
12 - 240 V AC/DC
|
|
Output Type
|
SPDT Relay
|
|
Switching Current
|
2 A
|
|
Switching Voltage
|
230 / 30 V AC/DC
|
|
Characteristic
|
Specifications
|
|---|---|
|
Housing Material
|
ABS Plastic
|
|
Lens/Optical Face Material
|
Plastic
|
|
Housing Style
|
Rectangular
|
|
Protection Rating
|
IP67
|
|
Operating Temperature Range
|
-40 °C to +60 °C (-40 °F to +140 °F)
|
|
Connection Type
|
Spring Contacts; Terminal Compartment with 8 Spring-Loaded Terminals (Wire Cross Section: 0.5 - 1.5 mm², Insulation Stripping: 7.5 - 8.5 mm); M16 x 1.5 Cable Gland
|
|
Dimensions (L x W x H)
|
AC Version: 65.5 mm x 25.8 mm x 88 mm; DC Version: 54.3 mm x 25.8 mm x 88 mm
|
|
Weight
|
Approx. 99.2 g (3.5 oz)
|
|
Compliance & Certifications
|
CE Approved, UL Listed, CSA Certified, EAC Conformity (TR CU 020/2011, TR CU 004/2011); Complies with EMC Directive 2004/108/EC, EN 60947-5-2:2007 + A1:2012, IEC 60947-5-2:2007 + A1:2012
|
