商品の詳細:
お支払配送条件:
|
| 締め付けトルク: | 0.6 Nm | 出力極性: | 直流 |
|---|---|---|---|
| 線形エラー: | 0.1% | 工事の種類: | M12 |
| インターフェースの種類: | RS-485 2本の多線ドロップ | ターゲットサイズ: | 0.3 ミリ |
| 頻度の切り替え: | ≤ 10 Hz | 長さ: | 63.5mm |
| 出力電流: | 4～20mA | ||
| ハイライト: | Pepperl+Fuchs SJ3.5 inductive slot sensor,inductive slot sensor with isolation,SJ3.5-G-N isolated barrier sensor |
||
Product Details:

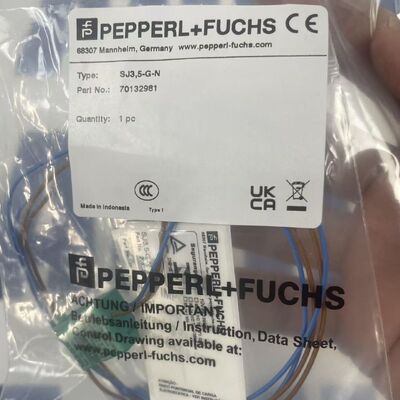

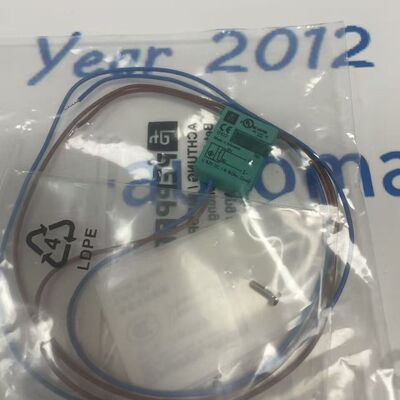

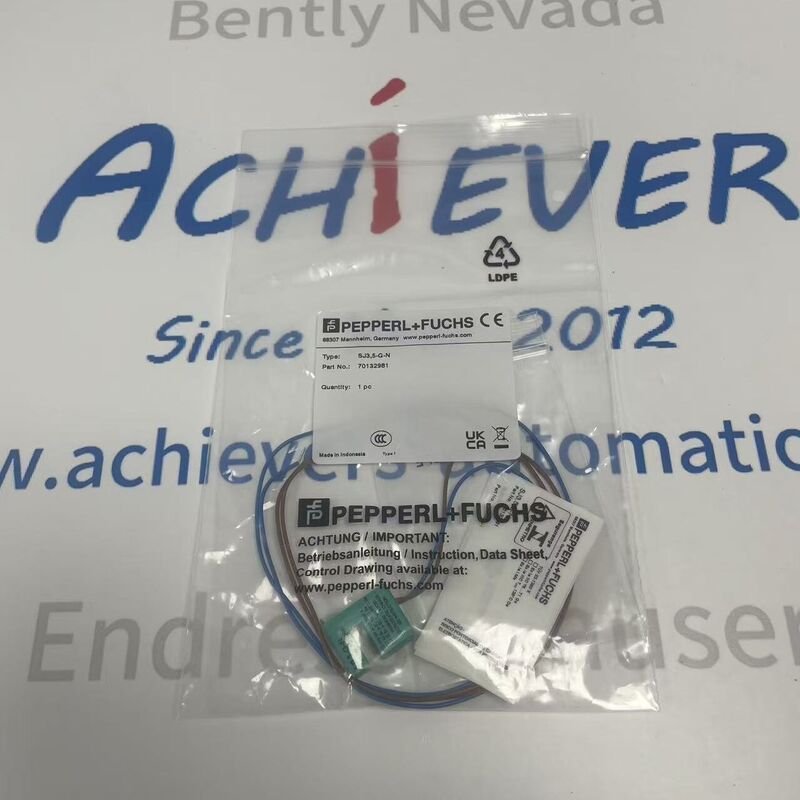

Manufacturer : Pepperl + Fuchs
Product No. : SJ3,5-G-N
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
|
Specification
|
Details
|
|
Product Model
|
SJ3,5-G-N
|
|
Manufacturer
|
Pepperl+Fuchs
|
|
Sensor Type
|
Inductive Slot Sensor
|
|
Slot Width
|
3.5 mm
|
|
Lateral Immersion Depth
|
5 - 7 mm, typical 6 mm
|
|
Switching Function
|
Normally Closed (NC)
|
|
Output Type
|
2-Wire, NAMUR (requires approved switch amplifiers)
|
|
Supply Voltage
|
5 - 25 V DC
|
|
Switching Frequency
|
0 - 3000 Hz
|
|
Current Consumption
|
≥ 3 mA (measuring plate not detected); ≤ 1 mA (detected) @ nominal voltage
|
|
Category
|
Specifications
|
|
Housing Design
|
Slim Compact Module, PBT Material
|
|
Connection Type
|
Flexible LIY Leads, 500 mm PVC Cable
|
|
Cable Specifications
|
Diameter: 1.1 ± 0.1 mm; Core Cross Section: 0.14 mm²; Bending Radius: >10×cable diameter
|
|
Protection Class
|
IP67
|
|
Operating Temperature
|
-25 °C to 100 °C (-13 °F to 212 °F)
|
|
Storage Temperature
|
-25 °C to 100 °C (-13 °F to 212 °F)
|
|
Dimensions
|
19.5 mm (Length) × 10 mm (Width) × 15 mm (Height)
|
|
Weight
|
Approx. 10 g
|
|
Certifications & Standards
|
NAMUR EN 60947-5-6:2000, IEC 60947-5-6:1999, IECEx, ATEX, UL, CSA, CCC Approved
|
