商品の詳細:
お支払配送条件:
|
| 製造: | 横川 | モデル: | AAI143-S50 |
|---|---|---|---|
| 製品タイプ: | アナログ入力モジュール | 補足コード 1: | S - 標準型 |
| 補足コード 2: | 5 - 爆発防止がない | 補足コード 3: | 0 - 基本型 |
| 入力信号: | 4～20mA | 配送重量: | 1.5kg |
| ハイライト: | YOKOGAWA pulse to analog converter,VJQ8-017-1AN0R220 signal converter,industrial pulse converter with warranty |
||
Product Details:

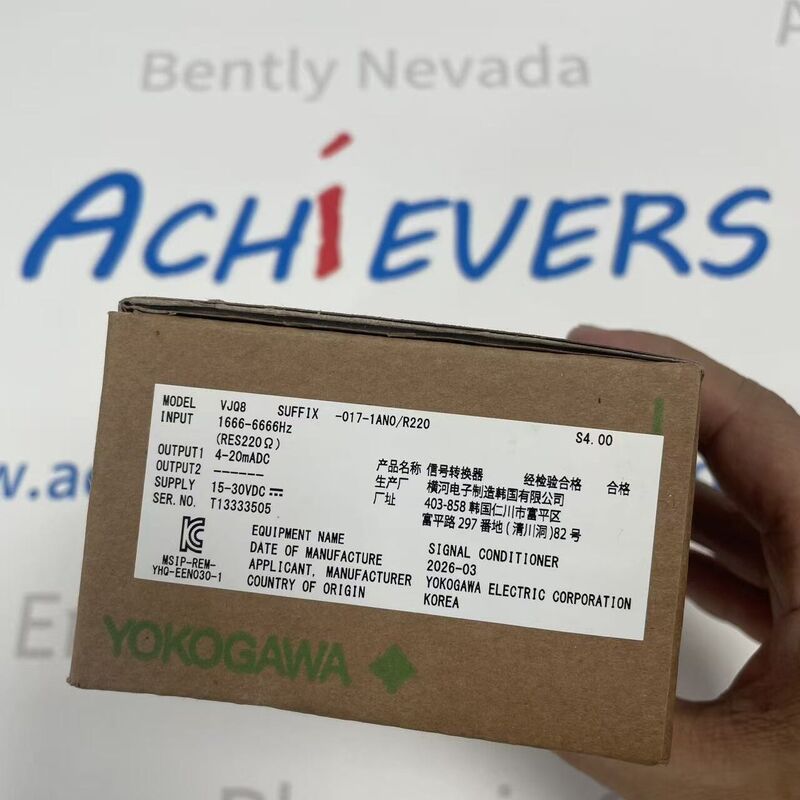

Manufacturer : YOKOGAWA
Product No. : VJQ8-017-1AN0R220
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
|
Specification Category
|
Details
|
|---|---|
|
Model
|
VJQ8-017-1AN0R220
|
|
Brand
|
Yokogawa Electric Corporation
|
|
Product Type
|
High-Function Pulse to Analog Converter
|
|
Input Signal
|
2-wire type ON/OFF contact, voltage pulse, current pulse (transmitter power supply available); 3-wire type voltage pulse (transmitter power supply available)
|
|
Input Frequency Range
|
0.1 Hz ≤ F₁₀₀ ≤ 100 kHz; 0 Hz ≤ F₀ ≤ F₁₀₀ (F₀ = 0% of input frequency, F₁₀₀ = 100% of input frequency)
|
|
Input Filter
|
Approx. 10 ms time constant (on/off selectable)
|
|
Conversion Mode
|
Selectable from F/V conversion or pulse integration
|
|
Output-1 Signal
|
4 to 20 mA DC or 1 to 5 V DC (configurable)
|
|
Output-2 Options
|
DC voltage signal, DC current signal, RS-485 communication, or 2 relay contact alarm outputs
|
|
Insulation Voltage
|
2000V AC (between input, output, power supply, and ground mutually)
|
|
Power Supply
|
AC 100~240V or DC 15~30V
|
|
Accuracy
|
±0.1% of span
|
|
Parameter Name
|
Specifications
|
|---|---|
|
Mounting Type
|
DIN rail mounting, VJ mounting, or wall mounting
|
|
Dimensions (H×W×D)
|
76mm × 29.5mm × 124.5mm
|
|
Operating Temperature Range
|
-10°C to +55°C (no condensation)
|
|
Storage Temperature Range
|
-25°C to +70°C (no condensation)
|
|
Relative Humidity
|
5% to 90% RH (non-condensing)
|
|
Power Dissipation
|
3.3W (24VDC & 110VDC); 6.2VA (100VAC); 8.1VA (200VAC)
|
|
Connector Type
|
M3 screw terminal, plug-in connector
|
|
Parameter Setting Method
|
PC (with VJ77 parameter setting tool) or handy terminal (JHT200, etc.)
|
|
Shunt Resistor
|
Built-in 220Ω shunt resistor (for current pulse input)
|
|
Communication Protocol
|
RS-485 Modbus ASCII/RTU (2-wire half-duplex)
|
Brand
Yokogawa Electric Group was founded in 1915 and is headquartered in Tokyo, Japan. It is a professional multinational company in the industrial control industry and has 128 companies in 62 countries and regions. In 1975, the important distributed control system (DCS system) was developed, and 10 generations of CENTUM DCS series products have been launched so far. In 1991, a digital monocrystalline silicon resonant differential pressure/pressure transmitter was developed. Yokogawa's flow meters, transmitters, analyzers and other field instruments have also been highly praised by users and have contributed to the development of industry and the progress of society.
Yokogawa Electric is one of the earliest foreign-funded enterprises in the industry to enter China. It began commercial activities in China in 1957. It established a Yokogawa representative office in China in 1965 and exported its first DCS (CENTUM) to China in 1979. In 1985, Yokogawa established a joint venture with Xi'an Instrument Factory and established its first joint venture in China - Xiyi Yokogawa Control System Co., Ltd. In October 2002, it established a wholly-owned "Yokogawa Electric (Suzhou) Co., Ltd." in the Suzhou Singapore Industrial Park in Suzhou. The Suzhou factory has a total area of 135,000 square meters and produces flow meters, recorders, etc. In 2008, in order to expand its business in the field of industrial automation in China, Yokogawa integrated many of its related companies and established "Yokogawa Electric (China) Co., Ltd.", headquartered in Shanghai. As an overall company in China, it adapts to the diversified needs of China's industrial automation market by strengthening sales, technical support, engineering, research and development, after-sales service and other functions. In 2020, in order to better exchange opinions with customers and achieve goals, Yokogawa Electric China Exhibition Hall (In-Space China) was established in Suzhou to provide customers with an immersive experience space and further expand its business in China.
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
Q:Which are the best-selling products?
A: Many brands of products have been supplied . For example, MTL safety barrier MTL5541, Endress Hauser RS33 , P+F safety barrier KFD2-SR2-Ex2.W, Hand Communicator TREXCHPNAWS1S
