| 締め付けトルク: | 0.6 Nm | 出力極性: | 直流 |
|---|---|---|---|
| 線形エラー: | 0.1% | 工事の種類: | M12 |
| インターフェースの種類: | RS-485 2本の多線ドロップ | ターゲットサイズ: | 0.3 ミリ |
| 頻度の切り替え: | ≤ 10 Hz | 長さ: | 63.5mm |
| 出力電流: | 4～20mA |

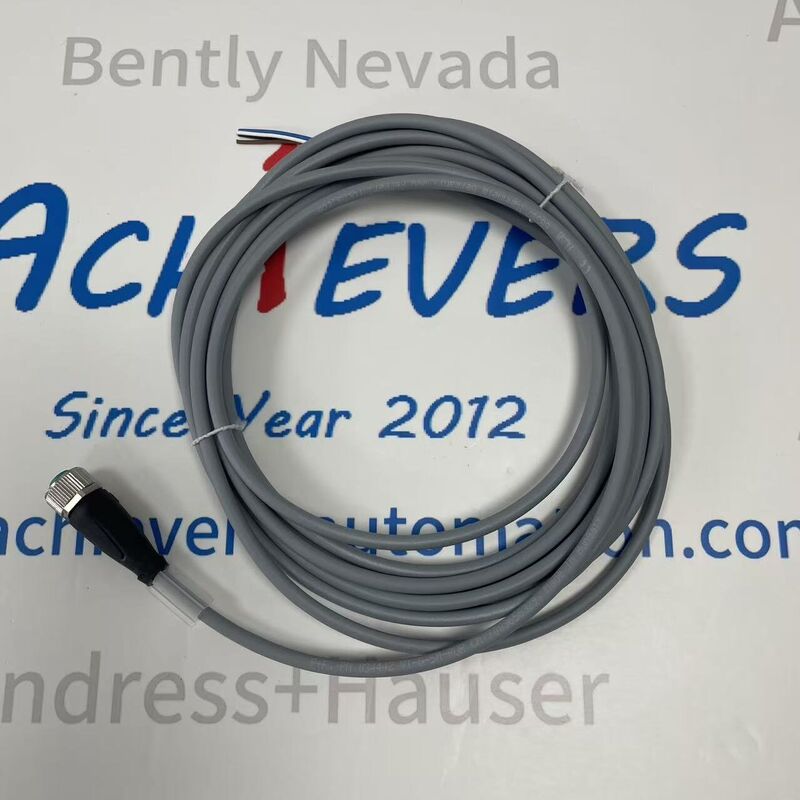

Product Details:
Manufacturer : Pepperl + Fuchs
Product No. : HV1-G-5M-PUR
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
|
Specification
|
Details
|
|---|---|
|
Model Number
|
HV1-G-5M-PUR
|
|
Brand
|
Pepperl+Fuchs (p+f)
|
|

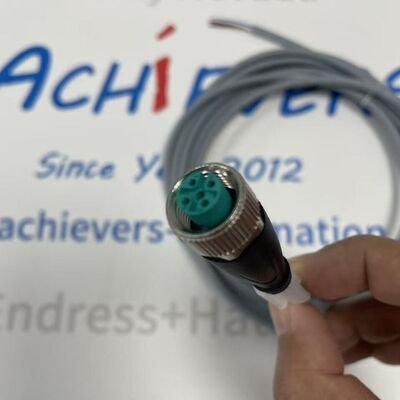

Connector Type
|
M12 female socket, straight
|
|
Number of Pins/Contacts
|
4 pins
|
|
Cable Length
|
5 meters (5M)
|
|
Cable Material
|
PUR (Polyurethane), halogen-free
|
|
Cable Core Configuration
|
4 x 0.34 mm², fine-strand conductor (19 x 0.15 mm ø)
|
|
Sheath Diameter
|
ø 4.8 mm
|
|
Protection Rating
|
IP67 / IP68 / IP69K (per EN 60529:2000)
|
|
Operating Voltage
|
Max. 250 V AC/DC
|
|
Operating Current
|
Max. 4 A
|
|
Volume Resistance
|
< 5 mΩ
|
|
Characteristic
|
Details
|
|---|---|
|
Operating Temperature (Body)
|
-40 ... 90 °C (-40 ... 194 °F)
|
|
Operating Temperature (Fixed Cable)
|
-40 ... 80 °C (-40 ... 176 °F)
|
|
Operating Temperature (Flexing Cable)
|
-25 ... 80 °C (-13 ... 176 °F)
|
|
Pollution Degree
|
3
|
|
Bending Radius
|
Moving: > 10 x cable diameter; Fixed: > 8 x cable diameter
|
|
Contact Material
|
CuSn / Au (copper-tin alloy with gold plating)
|
|
Body Material
|
TPU (Thermoplastic Polyurethane), black
|
|
Core Insulation
|
PP (Polypropylene)
|
|
Slotted Nut Material
|
Diecast zinc
|
|
Flammability
|
Contact carrier: HB; Housing: V-2
|
|
Cable Color
|
Grey
|
Brand
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
