| 締め付けトルク: | 0.6 Nm | 出力極性: | 直流 |
|---|---|---|---|
| 線形エラー: | 0.1% | 工事の種類: | M12 |
| インターフェースの種類: | RS-485 2本の多線ドロップ | ターゲットサイズ: | 0.3 ミリ |
| 頻度の切り替え: | ≤ 10 Hz | 長さ: | 63.5mm |
| 出力電流: | 4～20mA |
Product Details:
Manufacturer : Pepperl + Fuchs
Product No. : ML100-55/95/103
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
| Spec Category | Exact Parameter Value for ML100-55/95/103 |
|---|---|

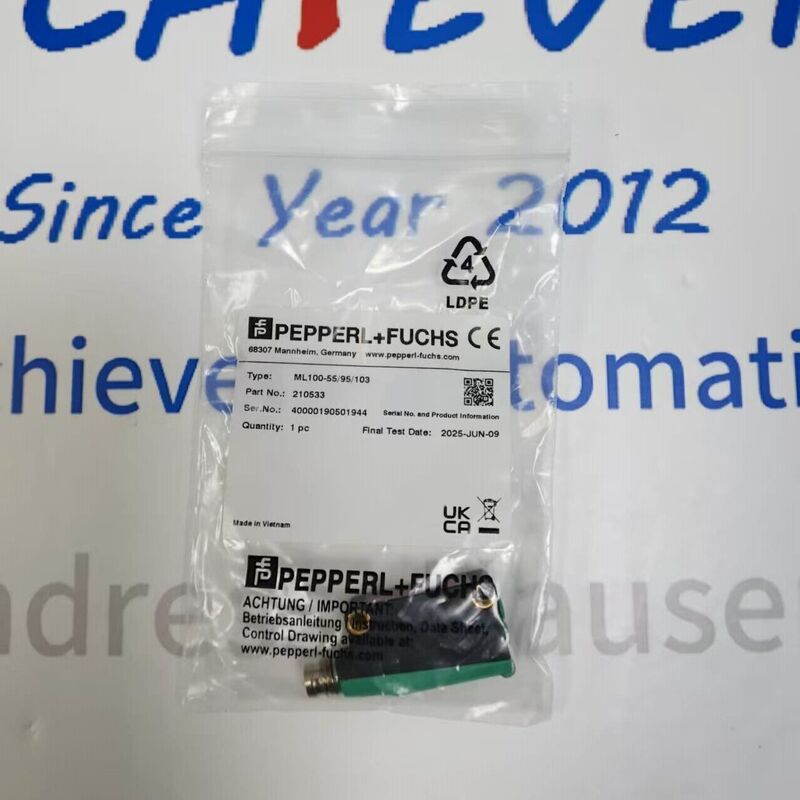

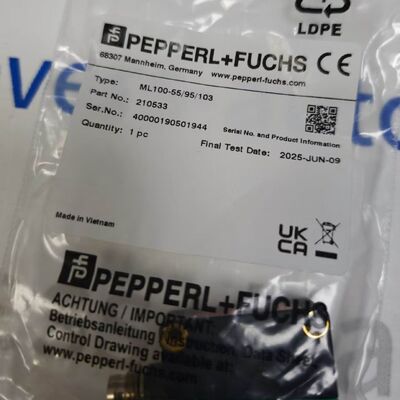

| Full Model Code | ML100-55/95/103 (Part No.: 210533) |

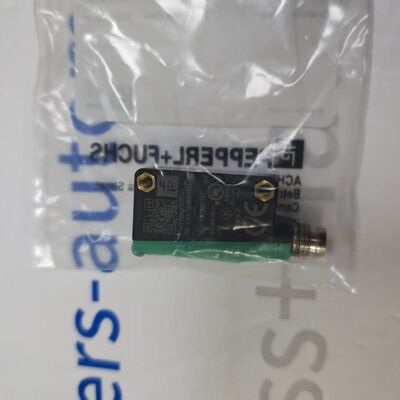

| Product Line | Pepperl+Fuchs ML100 Miniature Photoelectric Sensor |
| Detection Principle | Polarized Retroreflective (with integrated polarization filter) |
| Effective Detection Range | 0 m ~ 5 m (H50 reflector reference) |
| Threshold Maximum Sensing Distance | 7 m |
| Light Source | Modulated visible red LED, PowerBeam technology |
| Light Spot Diameter | Approx. 500 mm at 7 m distance |
| Beam Opening Angle | 4° |
| Operating Supply Voltage | 10 V DC ~ 30 V DC, max 10% ripple |
| No-Load Supply Current | < 20 mA |
| Switching Output | Single PNP open-collector, short-circuit & reverse polarity protected |
| Max Switching Load Current | 100 mA (resistive load) |
| Voltage Drop at Output | ≤ 1.5 V DC |
| Switching Frequency | 1000 Hz |
| Response Time | 0.5 ms |
| Switch Mode | Adjustable Light-On / Dark-On (factory default: Light-On) |
| Ambient Light Immunity Standard | EN 60947-5-2:2007+A1:2012 |
| Functional Safety MTTFd | 860 years |
| Rated Mission Time (TM) | 20 years |
| Physical & Environmental Item | Standard Technical Data |
|---|---|
| Housing Material | Polycarbonate (PC) plastic; optical window: PMMA |
| Overall Dimensions | 31 mm (H) × 11 mm (W) × 20 mm (D) |
| Net Unit Weight | Approx. 10 g |
| Electrical Connection | M8×1, 4-pin male connector |
| Mounting Hardware | Dual M3 metal threaded mounting holes (25.4 mm pitch) |
| Protection Class | IP67 |
| Operating Ambient Temperature | -30 °C ~ +60 °C (-22 °F ~ 140 °F) |
| Storage & Transport Temperature | -40 °C ~ +70 °C (-40 °F ~ 158 °F) |
| Relative Humidity Tolerance | 5% ~ 95%, non-condensing |
| Vibration Compliance | IEC 60068-2-6 industrial vibration standard |
| Status Indicators | Green LED: Power supply ON; Yellow LED: Switch signal feedback (flash = low signal reserve) |
| Certifications & Approvals | CE, cULus Listed (Class 2 power source), EAC conformity |
