商品の詳細:
お支払配送条件:
|
| ROHSステータス: | EU指令2011/65/EUに続いて | 信号の指定: | 020mA, 4.. 20mA, 0.. 10V, 2.. 10V |
|---|---|---|---|
| 出荷期間: | exw | プレッシャー: | 中圧 |
| 請求書の説明: | NKTT01終端ケーブル10フィート | 保証: | 1年 |
| 認証: | ATEX,IECEx,FM,CSA,CE | ||
| ハイライト: | ABB RTAC-01-KIT encoder interface,ABB pulse encoder kit,valve positioner encoder interface |
||
Description:

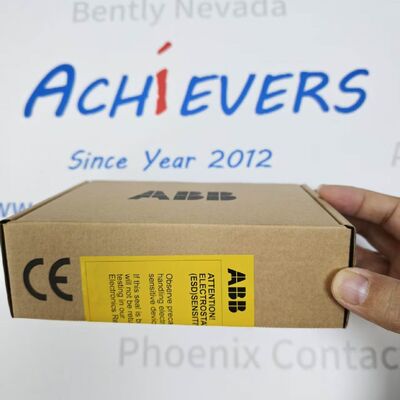

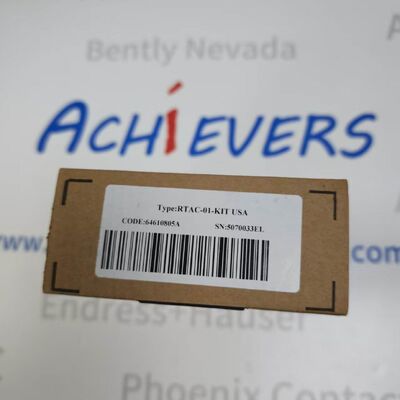

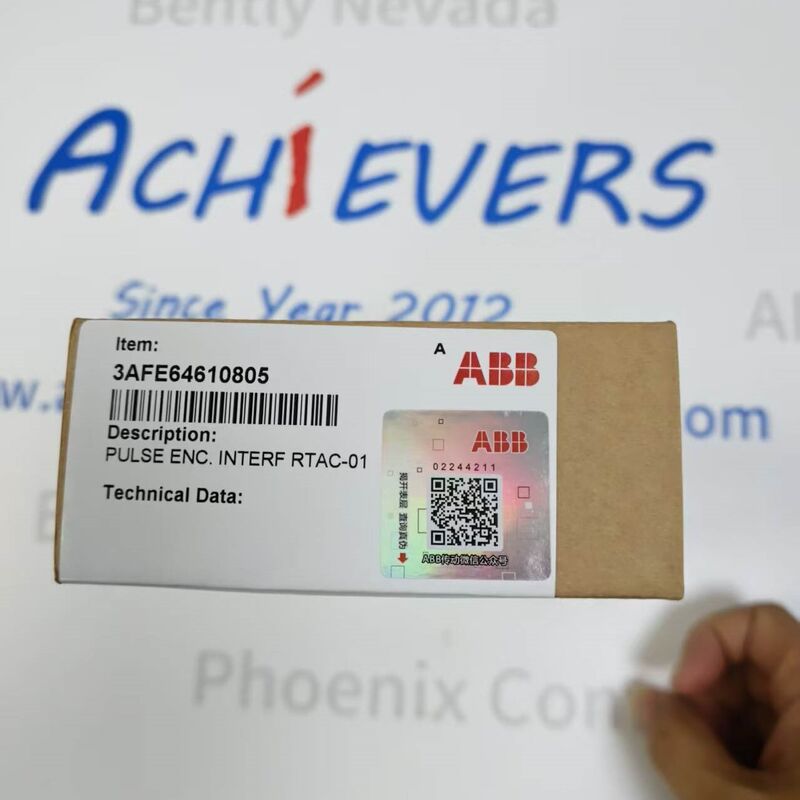

Manufacturer : ABB
Product No. : RTAC-01-KIT
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
| Specification Item | Technical Parameter | Standard & Functional Remark |
|---|---|---|
| Full Model SKU | RTAC-01-KIT | AB official option kit part number |
| Brand | AB (ABB Electrification Division) | Industrial low voltage & drive brand |
| Encoder Signal Channels | CH A, CH B, CH Z (3-phase pulse input) | 90° phase shift A/B, zero-index Z pulse |
| Supported Encoder Signal Type | Differential RS-422 / Single-ended Push-pull / Open Collector | Universal incremental encoder compatibility |
| Max Input Pulse Frequency | 200 kHz | High-speed motion feedback support |
| Selectable Encoder Supply Voltage | 15 VDC ±10% / 24 VDC ±10% | Jumper switch on X1 terminal for voltage selection |
| Max Encoder Output Power | 5 W (short-circuit proof) | Built-in overcurrent protection circuit |
| Module Operating Current Draw | 55 mA (from drive internal 24 V bus) | Occupies limited drive option slot power budget |
| Signal Isolation Rating | 1.5 kV AC, 1 min isolation test | Galvanic isolation between encoder & drive logic |
| Speed Feedback Accuracy | 50 ppm | Low drift for high-precision positioning |
| Maximum Encoder Cable Length | 300 m (differential) / 200 m (single-ended) / 100 m (open collector) | Distance varies by encoder wiring type |
| Signal Logic Threshold (15V Supply) | Logic 1 >7.6 V, Logic 0 <5 V | Stable signal identification against noise |
| Specification Item | Technical Parameter | Installation & Environmental Remark |
|---|---|---|
| Overall Net Dimension (W × D × H) | 62 mm × 34 mm × 95 mm | Compact plug-in slot design for drive internal mounting |
| Net Weight of Complete RTAC-01-KIT | 0.25 kg | Lightweight PCB + flame-retardant plastic housing |
| Mounting Method | Direct plug-in to Drive Slot 1 / Slot 2 | No extra DIN rail required, embedded installation |
| Terminal Connection Type | Screw clamp terminal blocks (X1 power, X2 signal) | Tool-free wiring maintenance |
| Protection Grade (Installed) | IP20 | Finger-safe terminal isolation inside drive cabinet |
| Operating Ambient Temperature | -25 °C ~ +70 °C | Continuous full-load operation without derating |
| Storage Temperature Range | -40 °C ~ +85 °C | Warehouse & transit temperature tolerance |
| Working Altitude (No Current Derating) | ≤ 2000 m | Altitude derating required above 2000 m |
| Diagnostic Indicators | CHA Green LED, CHB Green LED, WD/INIT Yellow LED | Real-time channel & module status diagnosis |
| Housing Material | Flame retardant thermoplastic PC | Arc resistance, anti-aging industrial grade material |
| Standard Compliance | IEC 61800, CE Mark, UL recognized | Global industrial automation certification |
Brand
ABB Group is a Swedish-Swiss multinational electrical engineering corporation. Incorporated in Switzerland as ABB Ltd., and headquartered in Zurich, it is dual-listed on the the Nasdaq Nordic exchange in Stockholm, Sweden, and the SIX Swiss Exchange in Zurich. ABB was ranked 340th in the Fortune Global 500 list of 2020 and has been a global Fortune 500 company for 24 years.
Company Introduction:
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
