商品の詳細:
お支払配送条件:
|
| 製造: | 横川 | モデル: | AAI143-S50 |
|---|---|---|---|
| 製品タイプ: | アナログ入力モジュール | 補足コード 1: | S - 標準型 |
| 補足コード 2: | 5 - 爆発防止がない | 補足コード 3: | 0 - 基本型 |
| 入力信号: | 4～20mA | 配送重量: | 1.5kg |
| ハイライト: | YOKOGAWA pH ORP combination sensor,FU20-VP-T1-NPTFPS pH sensor,All-In-One ORP sensor with NPTFPS |
||
Product Details:
Manufacturer : YOKOGAWA

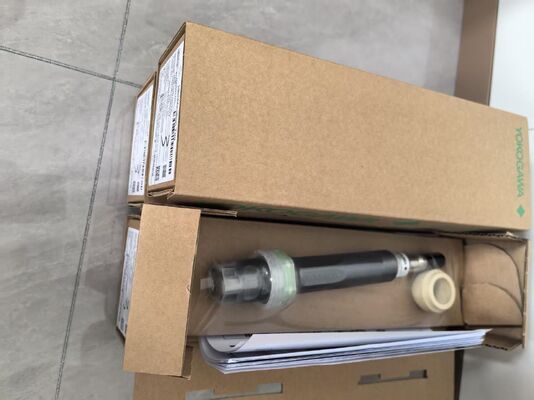

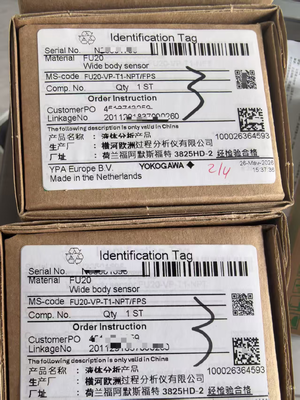

Product No. : FU20-VP-T1-NPTFPS
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
| Parameter Item | Technical Specification |
|---|---|
| Full Part Number | FU20-VP-T1-NPTFPS |
| Manufacturer | Yokogawa Electric Corporation |
| Product Series | FU20 Wide-Body pH/ORP Combination Sensor |
| Electrode Type | Dome-shaped G-glass pH electrode, solid Pt ORP pin |
| Reference System | Ag/AgCl saturated KCl, double-junction PTFE barrier |
| Temperature Element | Pt1000 RTD (IEC 751 standard, suffix T1) |
| Electrical Interface | VP VarioPin connector (no factory-attached cable) |
| Process Thread | 1” NPT tapered male thread (NPT suffix) |
| Matching Fitting Accessory | FPS PPO Noryl adapter (fits FS40/FF40/FD40 holders) |
| Main Body Material | PPS 40GF (Glass-filled Ryton) |
| Seal Material | Viton fluororubber O-ring |
| Reference Electrolyte | Polymerized saturated KCl, non-refillable |
| Internal Impedance (Dome Glass) | 250 ~ 500 MΩ at 25°C |
| Junction Resistance | 0.5 ~ 10 kΩ |
| Asymmetry Potential | ±15 mV maximum |
| Theoretical Slope Retention | >96% at 25°C |
| Isothermal Point | pH 7 |
| Overall Sensor Length | 218 mm |
| Net Weight | 320 g |
| Mounting Method | Direct thread mounting / FPS immersion fitting installation |
| Specification Item | Technical Value |
|---|---|
| pH Measuring Range | 0 ~ 14 (stable long-term operation: pH 2 ~ 12) |
| ORP Redox Range | -1500 mV ~ +1500 mV |
| Process Liquid Temperature | -10 °C ~ +105 °C |
| Maximum Operating Process Pressure | 0 ~ 10 bar (145 PSIG) |
| Minimum Liquid Conductivity | ≥ 50 μS/cm |
| Maximum Allowed Flow Velocity | 2 m/s |
| pH Response Time (7 → 4 step, 90% signal) | < 15 seconds |
| Temperature Response Time (10°C shift, 90% signal) | < 3 minutes |
| Full Signal Stabilization Time (0.02pH/10s drift) | < 2 minutes |
| Ambient Operating Temperature | -10 °C ~ +50 °C |
| Storage Temperature Range | -30 °C ~ +50 °C |
| Ingress Protection Class | IP67 (IEC 60529) |
| Electromagnetic Compliance | EN 61326-1 industrial EMC standard |
| Material Chemical Resistance | Resistant to mild acids, alkalis, brine and general organic solvents |
| Global Compliance Certifications | CE, RoHS 2, cULus recognized |
| Service Characteristic | Maintenance-free sealed electrolyte, no refilling required |
| Calibration Requirement | Standard 2-point buffer calibration before commissioning |
Brand
Yokogawa Electric Group was founded in 1915 and is headquartered in Tokyo, Japan. It is a professional multinational company in the industrial control industry and has 128 companies in 62 countries and regions. In 1975, the important distributed control system (DCS system) was developed, and 10 generations of CENTUM DCS series products have been launched so far. In 1991, a digital monocrystalline silicon resonant differential pressure/pressure transmitter was developed. Yokogawa's flow meters, transmitters, analyzers and other field instruments have also been highly praised by users and have contributed to the development of industry and the progress of society.
Yokogawa Electric is one of the earliest foreign-funded enterprises in the industry to enter China. It began commercial activities in China in 1957. It established a Yokogawa representative office in China in 1965 and exported its first DCS (CENTUM) to China in 1979. In 1985, Yokogawa established a joint venture with Xi'an Instrument Factory and established its first joint venture in China - Xiyi Yokogawa Control System Co., Ltd. In October 2002, it established a wholly-owned "Yokogawa Electric (Suzhou) Co., Ltd." in the Suzhou Singapore Industrial Park in Suzhou. The Suzhou factory has a total area of 135,000 square meters and produces flow meters, recorders, etc. In 2008, in order to expand its business in the field of industrial automation in China, Yokogawa integrated many of its related companies and established "Yokogawa Electric (China) Co., Ltd.", headquartered in Shanghai. As an overall company in China, it adapts to the diversified needs of China's industrial automation market by strengthening sales, technical support, engineering, research and development, after-sales service and other functions. In 2020, in order to better exchange opinions with customers and achieve goals, Yokogawa Electric China Exhibition Hall (In-Space China) was established in Suzhou to provide customers with an immersive experience space and further expand its business in China.
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
Q:Which are the best-selling products?
A: Many brands of products have been supplied . For example, MTL safety barrier MTL5541, Endress Hauser RS33 , P+F safety barrier KFD2-SR2-Ex2.W, Hand Communicator TREXCHPNAWS1S
