商品の詳細:
お支払配送条件:
|
| ワイヤの種類: | ポリマー繊維 | Rohs 準拠: | 準拠 |
|---|---|---|---|
| 使用圧力: | 0バー 8バー | 取付位置: | どれでも |
| サイズ: | 35 | 耐久性に連絡してください: | 100 |
| 脳卒中: | 40mm | プローブの材質: | ステンレス鋼 |
| ハイライト: | 16-channel PNP digital input module,remote I/O module with warranty,Festo digital input module |
||
Description:
Description: Danfoss

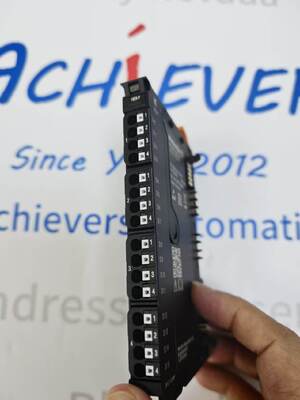

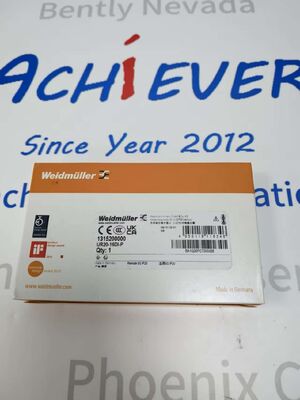

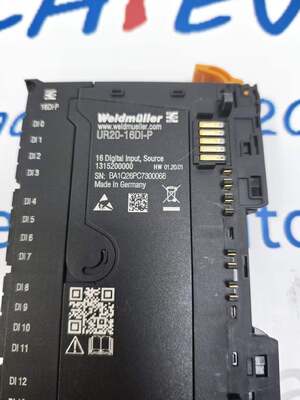

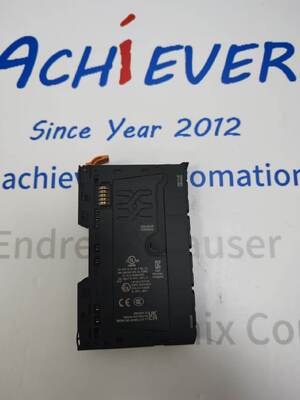

Product No. : UR20-16DI-P
https://www.achievers-automation.com More Products
Detail:
| Parameter Item | Technical Specification |
|---|---|
| Full Part Number | UR20-16DI-P |
| Manufacturer | Weidmuller |
| Factory Order Code | 1315200000 |
| Product Category | u-remote Remote Digital Input Module |
| Digital Input Quantity | 16 Channels |
| Switching Logic | PNP Positive Switching |
| Compatible Sensor Standard | Type 1, Type 3 (EN 61131-2) |
| Rated Supply Voltage | 24 VDC (-15% ~ +20%) |
| High Input Threshold | > 11 VDC |
| Low Input Threshold | < 5 VDC |
| Input Hardware Filter Time | 3 ms fixed |
| Max Input Switching Frequency | 1 kHz |
| Sensor Connection Mode | Single-wire connection |
| Onboard Auxiliary Sensor Power | Not available (external 24VDC required) |
| Galvanic Isolation Strength | 500 VDC between field side & system bus |
| Reverse Polarity Protection | Integrated for power circuit |
| System Bus Consumption (Typ.) | 8 mA |
| Power Segment Current Draw | < 25 mA |
| Process Data Length | 2 Byte (16-bit digital input mapping) |
| Module Overall Dimensions (W×H×D) | 11.5 mm × 120 mm × 76 mm |
| Net Weight | 44 g |
| Mounting Standard | TS35 DIN Rail Snap-on Installation |
| Wiring Terminal Type | Push-in Spring Terminal |
| Supported Wire Cross-Section | 0.14 ~ 1.5 mm² solid/stranded wire (AWG26 ~ AWG16) |
| Specification Item | Technical Value |
|---|---|
| Operating Ambient Temperature | -20 °C ~ +60 °C |
| Storage & Transport Temperature | -40 °C ~ +85 °C |
| Relative Humidity | 5% ~ 95% RH, non-condensing |
| Vibration Resistance Standard | IEC 60068-2-6, 1g acceleration (8.4 Hz ~ 150 Hz) |
| Shock Resistance Standard | IEC 60068-2-27 industrial grade |
| Ingress Protection Rating | IP20 (Control Cabinet Internal Use Only) |
| Supported Fieldbus Protocols | PROFINET RT/IRT, EtherCAT, Modbus/TCP, EtherNet/IP, PROFIBUS DP-V1, CANopen, CC-Link IE TSN |
| System Bus Max Transmission Speed | 48 MBit/s |
| Diagnostic Function | Global module fault diagnosis (no independent channel diagnosis) |
| EMC Compliance | EN 61000-6-2 industrial environment standard |
| Global Safety Certifications | cULus, CE Mark, RoHS Compliant (RoHS 7a/7cI Exemption) |
| REACH SVHC Compliance | Contains lead SVHC substance per standard specification |
| ETIM Classification Code | EC001599 |
| Carbon Footprint (Cradle-to-Gate) | 8,684 kg CO₂ eq. |
| Service Lifespan | Over 10 million plug/unplug module replacement cycles |
Brand
Achievers Automation Limited has more than 14 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
