商品の詳細:
お支払配送条件:
|
| ワイヤの種類: | ポリマー繊維 | Rohs 準拠: | 準拠 |
|---|---|---|---|
| 使用圧力: | 0バー 8バー | 取付位置: | どれでも |
| サイズ: | 35 | 耐久性に連絡してください: | 100 |
| 脳卒中: | 40mm | プローブの材質: | ステンレス鋼 |
| ハイライト: | SEW EURODRIVE BE2B motor brake,spring-applied electromagnetic brake,motor brake with warranty |
||
Description:

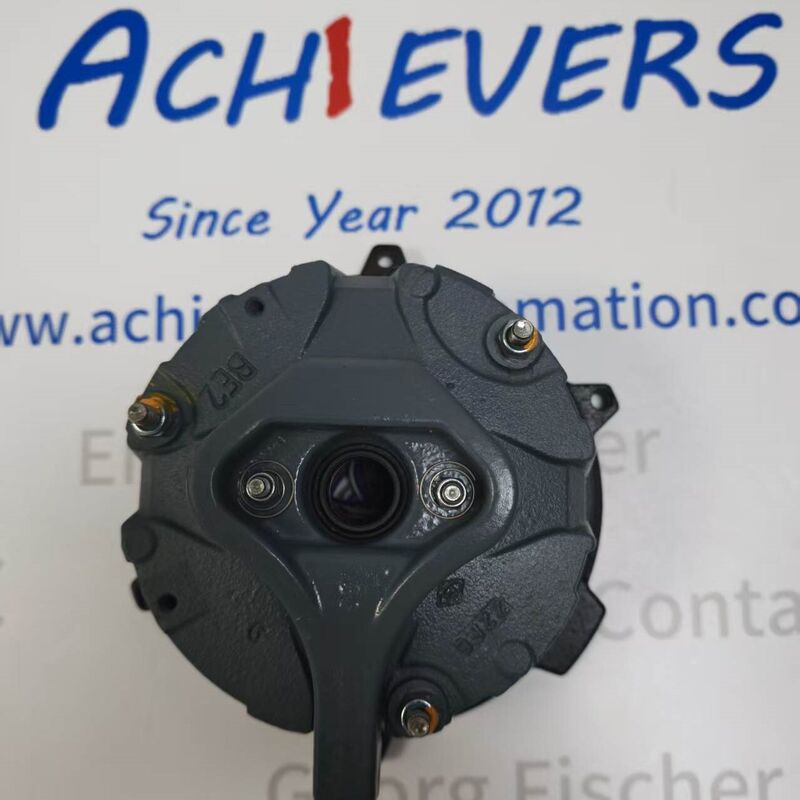

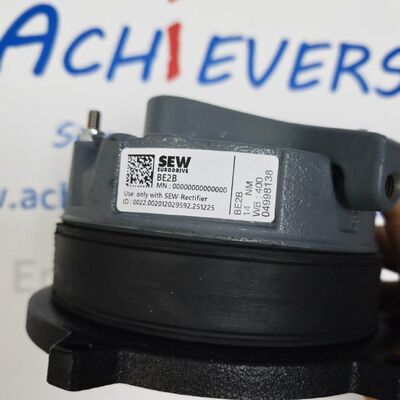

Description: SEW
Product No. : EURODRIVE-BE2B
https://www.achievers-automation.com More Products
Detail:
| Parameter Item | Technical Specification |
|---|---|
| Full Model Code | BE2B |
| Manufacturer | SEW-EURODRIVE |
| Compatible Motor Frames | DRN80, DRN90, DRN100 standard AC motors |
| Brake Working Principle | Spring-Applied, Power-Off Braking; DC Electromagnetic Release |
| Optional Static Braking Torque | 10 Nm / 14 Nm / 20 Nm |
| Standard Rated Coil DC Voltage | 24 VDC / 60 VDC / 96 VDC / 180 VDC |
| Matching Input AC Rectifier | BS24, BS60, BS96, BS180 (SEW dedicated rectifier required) |
| Coil Peak Inrush Power | 160–190 W (short 160ms startup pulse) |
| Continuous Holding Power (IH) | 43 W constant low power consumption |
| Inrush / Holding Current Ratio | 8.5:1 |
| Standard Armature Air Gap | 0.2 mm adjustable via set screws |
| Release Response Time (t1) | ≤ 12 ms |
| Braking Engagement Time (t2) | ≤ 18 ms |
| Friction Disc Structure | Single-piece organic non-asbestos friction pad |
| Optional Accessory | BMFR automatic reset manual release lever |
| Net Assembly Weight | 3.8–4.0 kg |
| Mounting Interface | Flange direct bolt-on rear motor shaft end |
| Maximum Allowable Switching Frequency | 120 cycles per minute |
| Specification Item | Technical Value |
|---|---|
| Standard Ingress Protection | IP54 (IP55/IP65 optional customized) |
| Standard Operating Ambient Temp | -20 °C ~ +40 °C |
| Extended Low-Temp Operation | Down to -40 °C with dual-coil heating accessory |
| Max Extended High-Temp Environment | Up to +100 °C for customized heat-resistant variant |
| Storage Temperature Range | -30 °C ~ +70 °C |
| Relative Humidity Tolerance | 5%–95% RH, non-condensing |
| Vibration Resistance Standard | IEC 60068-2-6 industrial machinery grade |
| Corrosion Protection Class | Standard factory anti-rust cast iron coating |
| Permitted Working Medium | Clean air environment, no heavy corrosive vapor |
| Safety Standard Compliance | EN ISO 13849-1, general PL c safety performance |
| Global Certifications | CE, RoHS compliant |
| Max Permitted Inertia Energy Per Brake Cycle | 0.06 × 10⁶ J |
| Service Wear Life | ≥ 5 million full brake-release cycles under rated torque |
| Installation Orientation | Unlimited horizontal / vertical mounting |
| Maintenance Interval | Gap adjustment inspection every 2,000 operating hours |
Brand
Achievers Automation Limited has more than 14 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
