商品の詳細:
お支払配送条件:
|
| タイプ: | 空気圧シリンダ | ハウジング幅: | 44のmm |
|---|---|---|---|
| 取付位置: | パーソナルケア | シール材質: | NBR（ニトリルゴム） |
| 公称流量 (DIN 1343): | 1600リットル/分 | 圧力規則の範囲: | 圧力規則の範囲 |
| ハイライト: | Festo piloted check valve,Festo HGL-1/8-QS-6 valve,Festo cylinder check valve |
||
Description:

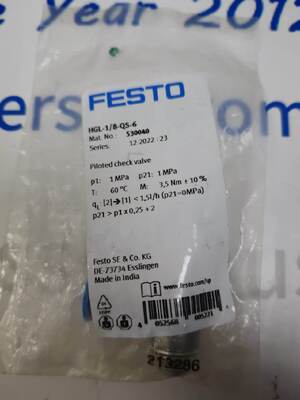

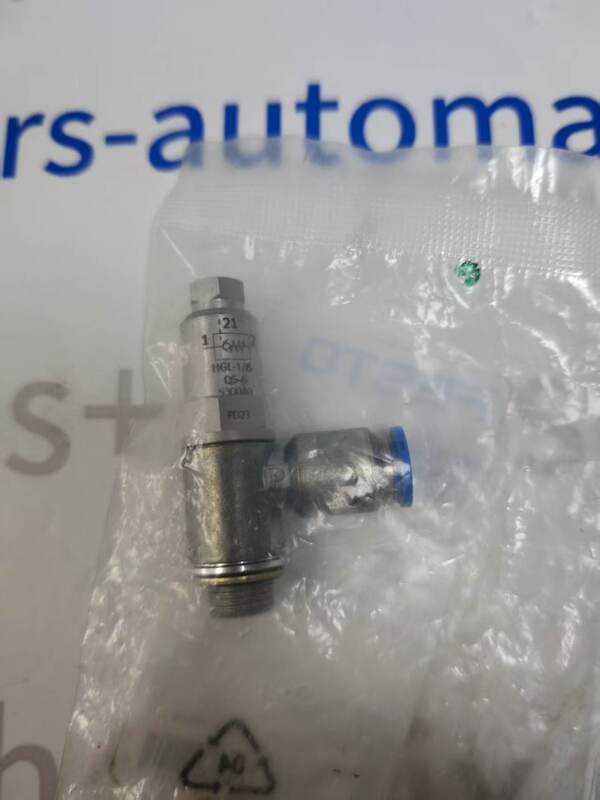

Manufacturer : Festo
Product No. : HGL-1/8-QS-6
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
| Parameter Item | Technical Specification |
|---|---|
| Full Part Number | HGL-1/8-QS-6 |
| Brand | Festo |
| Original Code | 530040 |
| Product Type | Piloted Non-Return Check Valve |
| Port 1 Connection | QS-6 Push-in Connector (6 mm tubing) |
| Port 2 Connection | G1/8 External Thread (ISO 228-1) |
| Pilot Port | M5 Thread Port |
| Mounting Type | Screw-in Installation |
| Mounting Position | Unlimited, any orientation |
| Nominal Flow Rate (1→2) | 270 l/min |
| Valve Body Material | Nickel-plated Brass + Anodized Aluminum |
| Seal Material | NBR Nitrile Rubber |
| Net Weight | 62 g |
| Tightening Torque | 3.5 Nm |
| Specification Item | Technical Value |
|---|---|
| Working Pressure Range | 0.5 bar ~ 10 bar |
| Required Pilot Pressure | 2 bar ~ 10 bar |
| Operating Medium | Compressed air per ISO 8573-1:2010 [7:4:4] |
| Lubrication Condition | Lubricated or non-lubricated air available |
| Ambient & Medium Temperature | -10°C ~ +60°C |
| Storage Temperature | -10°C ~ +60°C |
| Corrosion Resistance Class | CRC 2 (Moderate Corrosion Stress) |
| Compliance Standard | RoHS, VDMA24364-B2-L PWIS Free |
| Continuous Locking Performance | Zero air leakage under static pressure |
| Cleanroom Grade | ISO 14644-14 Class 4 |
