| タイプ: | 空気圧シリンダ | ハウジング幅: | 44のmm |
|---|---|---|---|
| 取付位置: | パーソナルケア | シール材質: | NBR（ニトリルゴム） |
| 公称流量 (DIN 1343): | 1600リットル/分 | 圧力規則の範囲: | 圧力規則の範囲 |

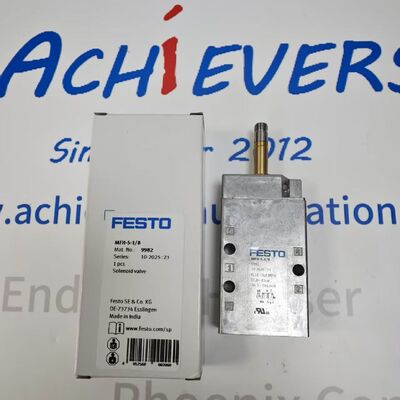

| ハイライト: | Festo MFH-5-18 solenoid valve,monostable poppet valve,Festo way solenoid valve |
||
Description:
Manufacturer : Festo
Product No. : MFH-5-18
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
| Parameter Item | Technical Specification |
|---|---|
| Full Model | MFH-5-1/8 (MFH-5-18) |
| Manufacturer | Festo |
| Original Part Number | 9982 |
| Valve Function | 5/2-way, Monostable (Solenoid + Spring Return) |
| Structure Type | Poppet Seat, Pilot Actuated |
| Nominal Size | 5 mm |
| Rated Flow Rate | 500 l/min (DIN 1343 Standard) |
| Port Thread | All ports G1/8 (ISO 228-1) |
| Mounting Method | Through-hole installation or PR rail manifold mounting |
| Grid Dimension | 27 mm |
| Valve Body Material | Die-cast Aluminium Alloy |
| Seal Material | NBR Nitrile Rubber |
| Manual Override | Detenting Locking Type |
| Net Weight | 270 g |
| Switch-on Time | 8 ms |
| Switch-off Time | 36 ms |
| Specification Item | Technical Value |
|---|---|
| Working Pressure Range | 1.8 bar ~ 8 bar |
| Working Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Lubrication | Works with lubricated or non-lubricated compressed air |
| Ambient Operating Temperature | -5°C ~ +40°C |
| Medium Temperature | -10°C ~ +60°C |
| Storage Temperature | -20°C ~ +60°C |
| Protection Class (With F Coil) | IP65 |
| Corrosion Resistance Class | CRC 1 (Low Corrosion Stress) |
| Certification | cULus Recognized, RoHS Compliant |
| Max. Switching Frequency | 3 Hz |
| Exhaust Port Function | Adjustable Throttle Option |
| Flow Direction | Non-reversible |
