商品の詳細:
お支払配送条件:
|
| タイプ: | 空気圧シリンダ | ハウジング幅: | 44のmm |
|---|---|---|---|
| 取付位置: | パーソナルケア | シール材質: | NBR（ニトリルゴム） |
| 公称流量 (DIN 1343): | 1600リットル/分 | 圧力規則の範囲: | 圧力規則の範囲 |
| ハイライト: | Festo high-speed solenoid valve,5/2 way solenoid valve M5 thread,Festo MHP2 solenoid valve |
||
Description:
Manufacturer : Festo

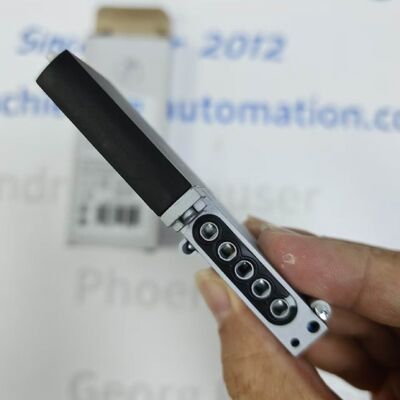

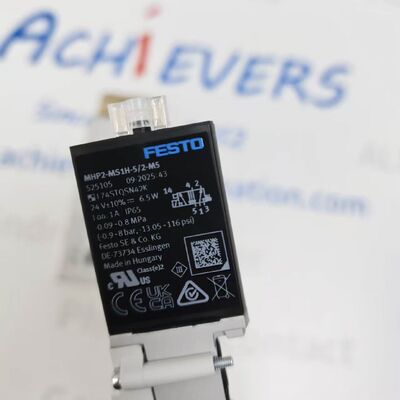

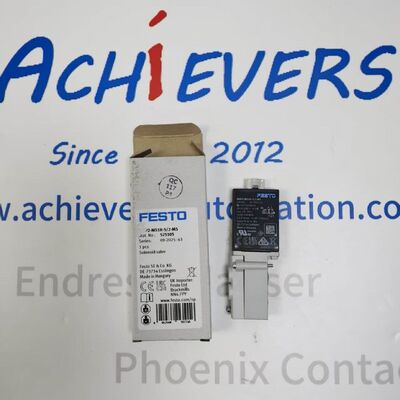

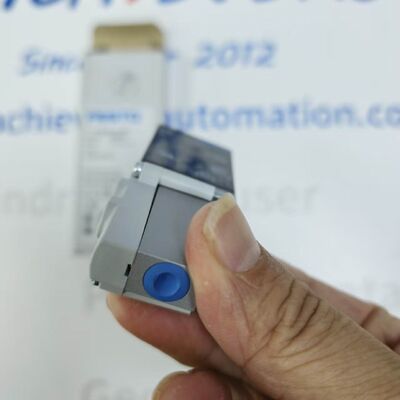

Product No. : MHP2-MS1H-52-M5
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
| Parameter Item | Technical Specification |
|---|---|
| Full Part Number | MHP2-MS1H-52-M5 (MHP2-MS1H-5/2-M5) |
| Manufacturer | Festo |
| Factory Order Code | 525105Festo |
| Valve Function | 5/2-way, Monostable (Solenoid + Spring Return) |
| Actuation Mode | Direct Acting Poppet Valve |
| Nominal Size | 2 mmFesto |
| Rated Flow Rate | 90 l/min (DIN 1343)Festo |
| Valve Width | 10 mm; Grid Dimension: 14 mmFesto |
| Pneumatic Ports | Port 2, 4: M5 female thread; Port 1, 3, 5: Sub-base connection |
| Control Voltage | 24 V DC (±10% tolerance)Festo |
| Coil Power | Peak 6.5 W, Holding 1.625 W (current reduction) |
| Electrical Connector | 2-pin ZC plug |
| Manual Override | Non-detenting push buttonFesto |
| Mounting Method | PR Rail Manifold Installation |
| Body Material | Die-cast Zinc Alloy |
| Seal Material | NBR + HNBR Rubber |
| Net Weight | 70 g |
| Switch-on Time | ≤ 2 ms; Switch-off Time: 1.7 msFesto |
| Specification Item | Technical Value |
|---|---|
| Operating Pressure Range | -0.9 bar ~ 8 bar (-0.09 MPa ~ 0.8 MPa)Festo |
| Max Switching Frequency | 300 HzFesto |
| Operating Medium | Clean compressed air ISO 8573-1:2010 Festo[7:4:4] |
| Lubrication | Lubricated or non-lubricated air (keep consistent)Festo |
| Ambient Operating Temperature | -5°C ~ +40°C |
| Medium Temperature | -10°C ~ +60°C |
| Ingress Protection Class | IP65 (Dust-tight, splash-proof)Festo |
| Corrosion Resistance Class | CRC 2 (Moderate Corrosion Stress) |
| Continuous Duty | 100% ED long-term energization allowed |
| Flow Direction | Non-reversible |
| Certifications | CE, cULus Recognized, RCM, RoHS & UKCA CompliantFesto |
| Vibration Standard | FN 942017-4, EN 60068-2-6 Level 2Festo |
Brand
Festo is a German automation company based in Esslingen am Neckar, Germany.[1] Festo produces and sells pneumatic and electrical control systems and drive technology for factories and process automation. Festo Didactic also offers industrial education and consultation services and is one of the sponsors and partners of the WorldSkills Mechatronics Competitions. Sales subsidiaries, distribution centres and factories of Festo are located in 61 countries worldwide. The company was named after its founders Albert Fezer and Gottlieb Stoll.
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
